Custom Fabrication
We specialize in custom fabrication solutions to create a piece of equipment to meet your specific needs. PERCO Rentals began our custom solutions efforts with the concept and design of the TrakVac, a vacuum module mounted on a PRINOTH Panther T12 and engineered and mounted on a Ledwell bed. This innovative partnership helped to create an efficient and effective piece of equipment designed for especially tight or sensitive areas that would be more difficult for a traditional vacuum truck to access.
Since then, we continue our efforts to design custom solutions for any job you may have.
The TrakVac is a first of its kind vacuum module mounted on a crawler carrier buggy. It combines the agility of a crawler carrier to access hard to reach areas with the technology to use hydro excavation where traditional digging can be more difficult close to underground utilities and pipelines. The prototype utilizes the Panther T12 model but can be installed on several different models. The vacuum unit works similarly to Ledwell’s Blower Vacuum Truck with a 7 gpm, 3,000 psi high pressure water system and 1600 cfm vacuum blower. It has a gross vehicle weight rating of 55,000 pounds and a ground pressure of six pounds per square inch.

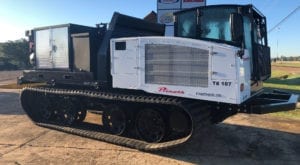

Fabricated by Ledwell, the Lube Buddy features a skid mount on the Prinoth Panther T8 crawler.
- Steel Tool Box 60"L X 42"T X 24"D - 14ga
- Houses Battery Box, Heavy Duty Drawer Pkg (weather proof), and Misc. Shelf Pkg.
- Tool Box Door material 1/8" Aluminum Tread Plate
- Steel Tool Box 52"L X 40"T X 34"D - 14ga
- Houses All Hose Reels for Product pumps and Waste Oil Pumps
- Tool Box Door material 1/8" Aluminum Tread Plate
- Steel - tool box 32"L X 40" X 24" D - 14ga
- Houses new filters on shelves and used filters below with drip pan and suction port for removal of waste
- Standard Product Tanks: 100G Fresh, 50G Fresh, and 150G Waste
- 13HP Heavy Duty Compressor Unit
- Supplies product delivery
- Battery charge for on board 12V battery
- 1- Diaphragm pump for waste
- 2- Product pumps for fresh oil
- 2- Electronic Graco Flow Meters for fresh oil
- Storage Cabinet for Grease Tubes *
- 2- Hannay Hose reel - product w/hose
- 1- Hannay Hose reel - waste (diaphragm) w/hose
- 1- Hannay Hose reel - Air w/hose
- Mechanics drawer set - Heavy Duty Water Proof
- Battery/Battery box
- Non-vented brass caps on fresh tanks X 2
- Breather - 3/4" npt chrome X 3 on all tanks
- Air manifold to operate all product reels
The Sandblast Rig can be mounted on multiple models of the crawler carrier using a Doosan Air Compressor (shown with a Doosan 375 model).
Hydroseeders efficiently spread seed and fertilizer over large areas and is the most effective method of establishing turf and controlling erosion.
Spreader machines mounted on rubber tracked carriers reduce impact on the environment as you work to restore it or to seed, fertilize and spread lime.
The TrakVac 650 builds on the power and versatility of the TrakVac, a crawler carrier mounted with a vacuum module. The TrakVac 650 finds a middle ground with a 650 capacity tank which is interchangeable and can accommodate multiple types of equipment including a crane, digger, sandblast rig, flat bed and much more.
The Ledwell Trak Pole Trailer is exclusively designed and manufactured for PERCO Rentals to transport utility poles and materials.
TEREX C6060:
- UPPER CONTROLS - 24” X 24” X 42” PLATFORM WITH INSULATED LINER
- TRANSFERABLE POLE CLAWS
- 15,000 LB TURRET MOUNTED WINCH
- 18,100 LB CAPACITY AT 10’ RADIUS BARE BOOM COMMAND POST
- RADIAL OUTRIGGERS MOUNTED ON TRACK MACHINE
- 12,000 LB TWO SPEED DIGGER
- 24”, 30” & 36” ROCK RIPPER AUGERS AVAILABLE
- SPRING LOADED HYDRAULIC HOSE REEL
- 30,000 LB HYDRAULIC WINCH MOUNTED ON THE FRONT OF TRACK MACHINE
- NO WIDTH OR HEIGHT PERMIT REQUIRED
PRINOTH T12:
- CATERPILLAR C7.1 ACERT / 250 HP
- TIER 4 EMISSION
- 6.2 MPH (UNLOADED)
- HST TRANSMISSION SYSTEM WITH HST BRAKE + EMERGENCY BRAKE
- 21” GROUND CLEARANCE
- 29.6” TRACK WIDTH - - ENCLOSED SINGLE CAB WITH AC/HEAT
-
